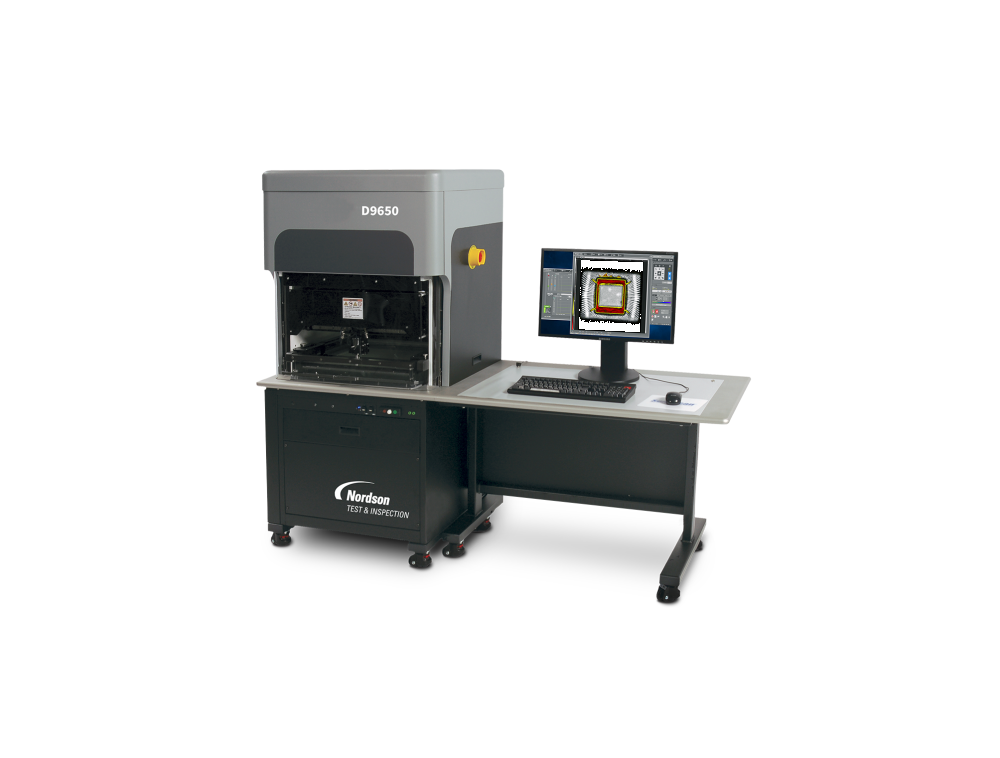

AMI D9650
The most popular acoustic microscope used worldwide for routine laboratory analysis and component screening applications.

Specifically designed to serve as a general purpose tool for failure analysis, process development, material characterization and low volume production inspection, the capabilities of the D9650 are truly unmatched.

Representing the latest in C-SAM acoustic micro imaging, the D9650 delivers the unrivaled accuracy and robustness that you would expect from Nordson Test & Inspection instruments, plus improved electronics and software that raises the performance level for laboratory acoustic microscopes.

Features:

- PolyGate technology with Multi-Gate and Probing-Gate functions capable of
single and multi-focus imaging.
- Set up to 100 gates per channel.
- Windows® 10 Ultimate for multi-language and 64 bit capabilities.
- Precise scanning with tower mounted scan reference platform and sample
fixture.
- Optional Digital Image Analysis (DIA), water recirculation, Waterfall transducer
and inline temperature control.
